Acute Pulmonary Embolism and V/Q SPECT

Snapshot

V/Q scintigraphy shows what an embolus does: it removes perfusion from a segment whose airways stay open. EANM (2019) recommends one-day V/Q SPECT, read holistically and reported as PE present or absent; PE is diagnosed with a mismatch of at least one segment or two subsegments. With these criteria, series of over 5000 patients report sensitivity 96–99%, specificity 96–98% and only 1–4% non-diagnostic reports. The test has no contraindications, but it answers the question only after clinical probability and D-dimer have selected the patient.

Read the full article →In-depth, fully referenced version
≥1 seg or ≥2 subsegMismatch needed to diagnose PE
96–99%Sensitivity of V/Q SPECT
1–4%Non-diagnostic SPECT reports
Reference values
  • Perfusion: ⁹⁹ᵐTc-MAA 140–160 MBq for one-day SPECT (EANM 2019); SNM 4.0 adult range 40–150 MBq
  • Particles: about 400 000 usually; 60 000 suffice for imaging; 100 000–200 000 in pulmonary hypertension, right-to-left shunt, pneumonectomy or single-lung transplant
  • Ventilation: 25–30 MBq in the lungs (Technegas or ⁹⁹ᵐTc-DTPA aerosol), acquired first
  • SPECT: general-purpose collimator, 64 × 64, 120–128 projections; 10 s per projection (V), 5 s (Q); iterative reconstruction
  • Effective dose about 2 mSv; low-dose CT adds 1–2 mSv; breast dose under 1 mSv
  • Three-month VTE rate after a negative V/Q SPECT without anticoagulation: 0.38% (1/262)

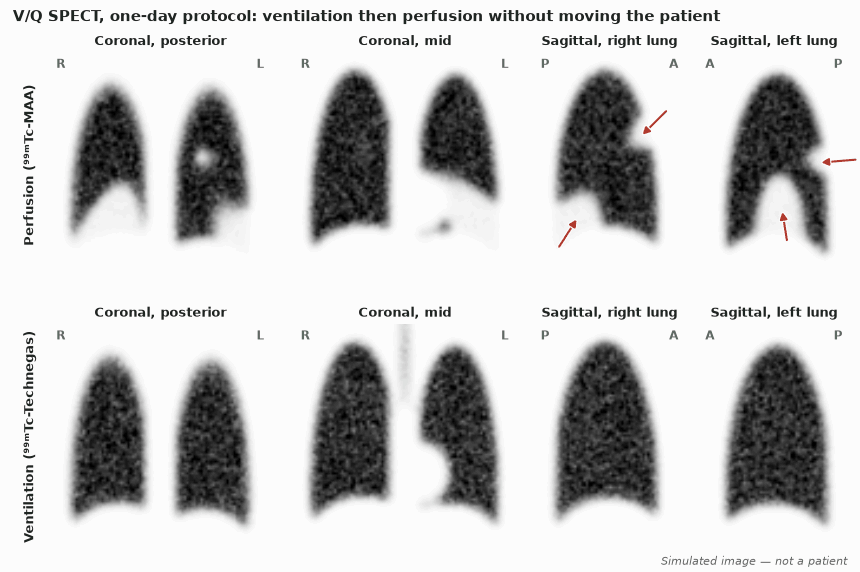

Simulated V/Q SPECT, coronal and sagittal slices. Perfusion row shows four wedge-shaped, pleural-based defects in both lower lobes and the right upper lobe; ventilation row is normal. Red arrows mark the defects on the sagittal slices.
Figure. Acute PE on V/Q SPECT. Several segmental perfusion defects (arrows) are pleural-based and wedge-shaped, and ventilation in the same places is normal: mismatch in more than one segment, so the report reads PE present.

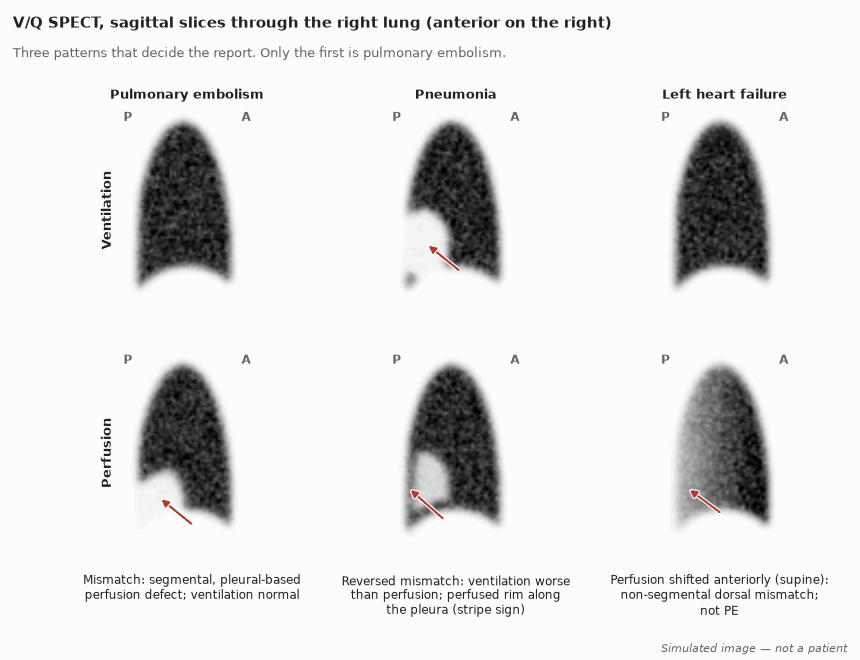

Simulated sagittal V/Q SPECT slices of the right lung in three conditions: PE with a wedge perfusion defect and normal ventilation; pneumonia with a ventilation defect larger than the perfusion defect and a perfused pleural rim; left heart failure with perfusion shifted anteriorly.
Figure. Three patterns that decide the report. PE gives a segmental mismatch. Pneumonia gives reversed mismatch, with perfusion preserved in a stripe along the pleura. Left heart failure in a supine patient shifts perfusion anteriorly, leaving a non-segmental dorsal mismatch that is not PE.

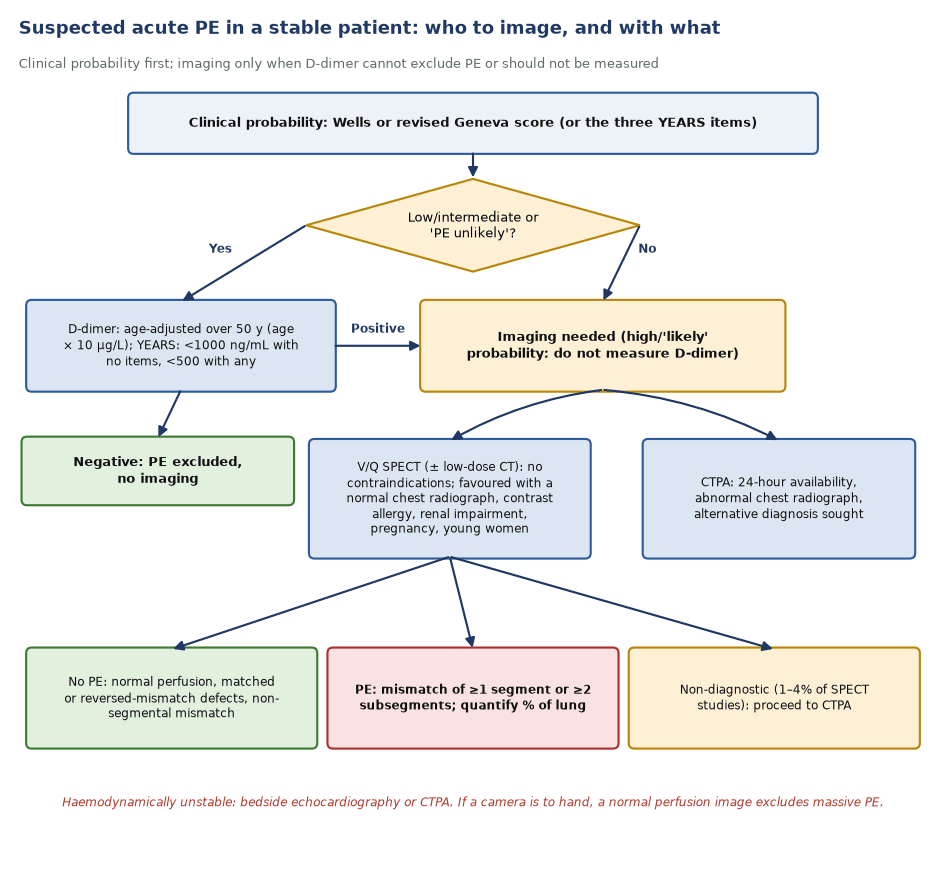

Flow chart: clinical probability, then D-dimer for low or intermediate probability, then imaging with V/Q SPECT or CTPA, and the three possible V/Q SPECT results.
Figure. Who to image, and with what. D-dimer is only measured when probability is not high. V/Q SPECT is favoured when the chest radiograph is normal and contrast or breast dose is a concern. A non-diagnostic SPECT (1–4%) goes on to CTPA.

Who needs imaging

  • Start with clinical probability: Wells or revised Geneva score, or clinical judgement.
  • Measure D-dimer only when probability is low, intermediate or 'PE unlikely'. A negative result excludes PE; an age-adjusted cut-off (age × 10 µg/L over 50 years) had a 3-month failure rate of 0.3% in ADJUST-PE.
  • YEARS uses three items (signs of DVT, haemoptysis, PE the most likely diagnosis) with a D-dimer cut-off of 1000 ng/mL when no item is present and 500 ng/mL otherwise. It avoided CTPA in 48% of patients (34% with Wells); 3-month VTE 0.61%.
  • With a high or 'likely' probability, go straight to imaging. D-dimer has no discriminating value there.
  • Image early: perfusion can recover within days.

V/Q or CTPA?

  • Prefer V/Q when the chest radiograph is normal or near-normal, when there is contrast allergy, renal impairment or thyroid disease, and in pregnancy and young women, where breast dose matters. See suspected PE in pregnancy.
  • Prefer CTPA when you need 24-hour availability, when the radiograph is abnormal, or when an alternative diagnosis or right ventricular strain must be shown.
  • In a randomised trial of 1417 patients, CTPA was non-inferior to V/Q (3-month VTE after a negative test 0.4% vs 1.0%). It diagnosed more PE (19.2% vs 14.2%), and the clinical meaning of the extra small emboli is uncertain.
  • In PIOPED II, CTPA had sensitivity 83% and specificity 96%, and 6.2% of studies were inconclusive on image quality. In a head-to-head series, V/Q SPECT with low-dose CT had sensitivity 97% and specificity 100%, against 68% and 100% for CTPA.
  • In an unstable patient, CTPA or bedside echocardiography is usual; a normal perfusion image, even one planar view, excludes massive PE.

Radiopharmaceuticals and acquisition

  • ⁹⁹ᵐTc-MAA particles (15–100 µm) lodge in precapillary arterioles in proportion to flow. Shake the vial, never draw blood into the syringe (clumps make hot spots), and inject slowly over about 30 s with the patient supine.
  • For ventilation, Technegas (0.005–0.2 µm carbon particles, used within 10 min of generation) or ⁸¹ᵐKr is preferred in COPD. ⁹⁹ᵐTc-DTPA droplets (1.2–2 µm) deposit centrally in obstructed airways.
  • Acquire ventilation SPECT, then perfusion SPECT, without moving the patient. The perfusion study has about five times the ventilation activity, so ventilation counts barely affect the perfusion images.
  • Low-dose CT (V/Q SPECT/CT) adds specificity by showing emphysema, consolidation, effusion or vascular compression.

Reading the study

EANM reads V/Q SPECT holistically. Every defect is judged against pulmonary vascular anatomy and against ventilation.

PatternWhat it means
Mismatch: pleural-based, segmental or subsegmental perfusion defect with normal ventilationPE, if ≥1 segment or ≥2 subsegments
Matched defectAirway or parenchymal disease; not PE
Reversed mismatch: ventilation worse than perfusionPneumonia, COPD, mucus plugging
Stripe sign: perfused rim at the pleura beyond a defectArgues against PE in that zone; typical of pneumonia
Antigravitational perfusion (anterior more than posterior, supine) with a dorsal, non-segmental mismatchLeft heart failure with congestion; not PE
Uneven, patchy ventilation with milder perfusion changeCOPD; grade severity from the ventilation images
Normal perfusionPE excluded
Widespread abnormalities typical of no single diseaseNon-diagnostic (1–4%): proceed to CTPA

Reporting and pitfalls

  • Report a binary conclusion: PE present, PE absent, or (rarely) non-diagnostic. Do not use PIOPED probability categories for SPECT; they generated large numbers of non-diagnostic reports.
  • Record a single subsegmental mismatch, but it does not meet the criteria for PE. Its clinical significance is unproven.
  • Quantify embolic extent as the number of mismatched segments and subsegments, expressed as a percentage of lung. Extent predicts recurrence and supports outpatient treatment decisions.
  • Compare with any previous study. Without both, old and new emboli are hard to separate.
  • Technical pitfalls: MAA hot spots, free pertechnetate (thyroid, stomach, kidneys), central DTPA deposition, and patient movement between ventilation and perfusion, which creates false mismatch.
  • Non-segmental defects from cardiomegaly, hilar nodes, tumour or effusion are not PE. More in the full article: V/Q imaging.
In depth
  • PIOPED (1990) explains why probabilistic planar reporting failed: a high-probability scan had sensitivity 41% and specificity 97%; 33% of intermediate-probability scans had PE, as did about 12% of low-probability scans.
  • In a head-to-head study, V/Q SPECT alone had specificity 88%. Adding low-dose CT raised it to 100%, while perfusion SPECT plus low-dose CT without ventilation fell to 51%. CT does not replace the ventilation study.
  • A meta-analysis of 9 studies (3454 patients) gave pooled sensitivity 96% and specificity 97% for V/Q SPECT. A later systematic review found a high risk of bias, so the exact accuracy is still uncertain; management outcome data (3-month VTE 0.38% after a negative study) are the stronger evidence.
  • The stripe sign was validated in PIOPED: in 93% of lung zones with the sign (79 of 85), there was no PE in that zone.
  • When ventilation was dropped during the COVID-19 pandemic to avoid aerosols, perfusion alone confidently excluded PE in only 57% of patients (French registry).
  • Isolated subsegmental PE managed without anticoagulation (after negative leg ultrasound) had a 90-day recurrent VTE rate of 3.1%: 2.1% for a single subsegmental clot and 5.7% for several.

Sources: PIOPED, JAMA 1990 (PMID 2332918) · Gutte 2009 (PMID 19910421) · Kan 2015 (PMID 24917606) · Le Roux 2020 (PMID 33433051) · Le Roux 2014 (PMID 24719158) · Sostman 1992 (PMID 1620847) · EANM 2019 (PMID 31410539) · Le Roux 2022 (PMID 34649944) · Le Gal 2022 (PMID 34807722)
